800 µL Biocompatible PEEK Static Mixer
43X-0800B

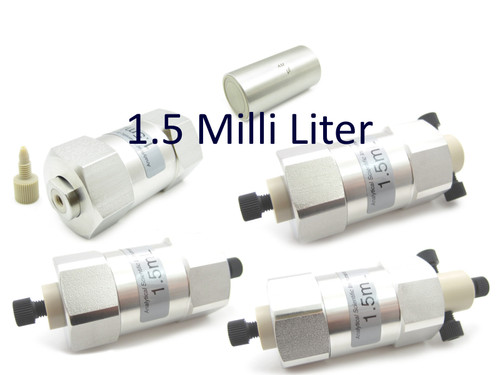

High Flow Series cartridges:800 µL, 1 mL and 1.5 mL are interchangeable and fit in all High Flow Series In-line, Binary tee and Ternary tee housings..
Delay volume specified below was calculated based on an ASI engineering drawing. The delay volume can be verified by injecting a sample at a known flow rate, then measuring the time this sample first appears at the exit of the mixer.
Back pressure varies directly with flow rate. For example, if the back pressure is 2 PSI at 1 mL/min., it will be 4 PSI at 2 mL/min.
PEEK fittings should be used and Stainless Steel fittings should NOT be used. PEEK fittings are not included. If you need the fittings, please order PEEK Fingertight 10-32 port Fitting for 1/16" Tube 800-0630 or PEEK Fingertight 1/4-28 flat-bottom Fitting for 1/16" Tube 800-0612 separately.
Current stock:
0
1 mL Biocompatible PEEK Static Mixer
US$0.00
Part Number: 431-1000B
- Specifications:
Port size: 10-32 CPI or 1/4-28 Flat Bottom
Maximum Operating Pressure (10-32 CPI): 3,000 PSI
Maximum Operating Pressure (1/4-28 Flat Bottom): 2,500 PSI
Maximum Temperature Rating: 40 °C
Delay volume: 1.0 mL
Back pressure: < 2 PSI @ 1 mL/min. with water
- Part Number:
- 431-1000B
- Wetted Material:
- PEEK
