Low Flow Series cartridges: 50 µL through 250 µL are interchangeable and fit in all Low Flow Series In-line, Binary tee and Ternary tee housings.
Delay volume specified below was calculated based on an ASI engineering drawing. The delay volume can be verified by injecting a sample at a known flow rate, then measuring the time this sample first appears at the exit of the mixer.
Back pressure varies directly with flow rate. For example, if the back pressure is 2 PSI at 1 mL/min., it will be 1 PSI at 500 µL/min.
PEEK fittings should be used and Stainless Steel fittings should NOT be used. PEEK fittings are not included. If you need the fittings, please order PEEK Fingertight Fitting for 1/16" Tube 800-0630 separately.
Current stock:
0

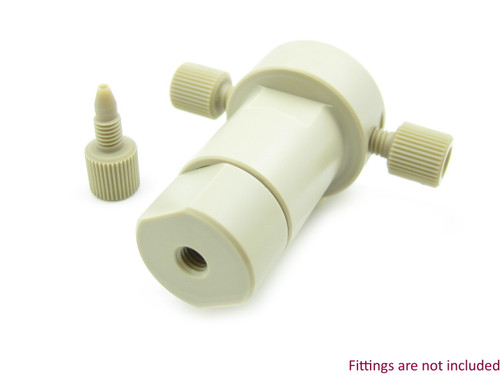

250 µL Biocompatible PEEK Static Mixer
US$739.00
Part Number: 411-0250B
- Specifications:
Port size: 10-32 CPI (standard HPLC fittings for 1/16" tube)
Maximum Operating Pressure: 3,000 PSI
Maximum Temperature Rating: 40 °C
Delay volume: 250 µL
Back pressure: < 2 PSI @ 1 mL/min. with water
- Part Number:
- 411-0250B
- Wetted Material:
- PEEK
