Model 541 High Temperature Metering Pumps allow operation up to 100°C and 4,000 PSI and have all of the other features of the M541 pumps.
Current stock:
0

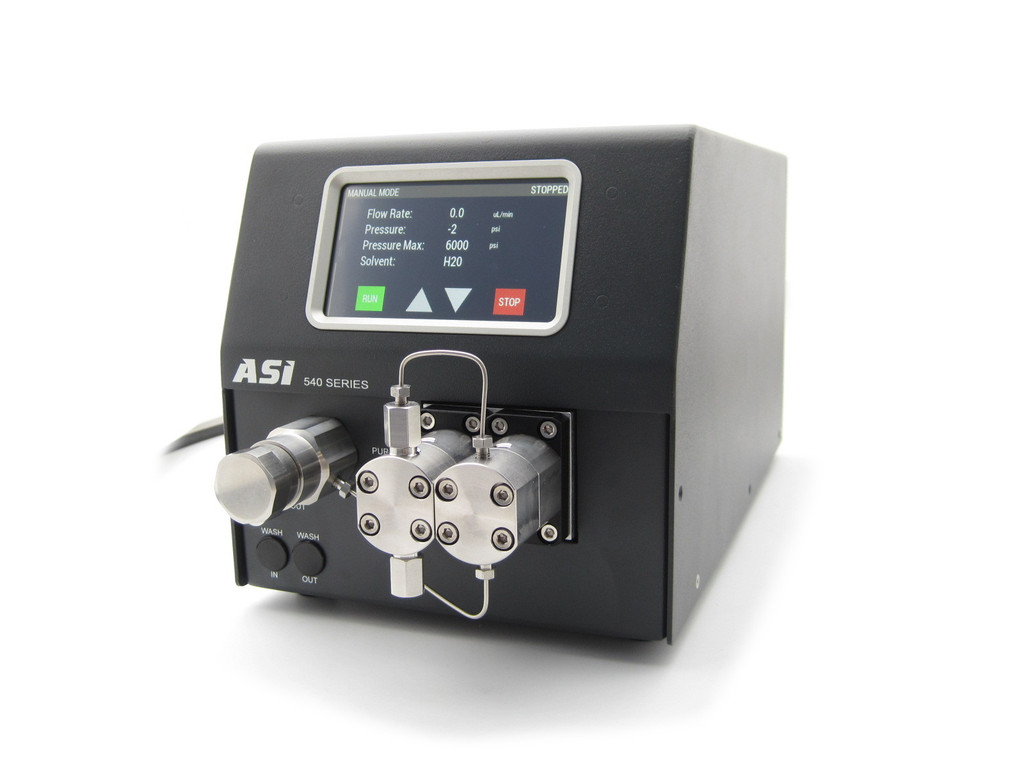

Model 541, Micro High Temperature Metering Pump
Contact us for pricing
Part Number: 541-0004HT
- Specifications:
Flow Range: 0.5 μL/min. to 4 mL/min.
Maximum pressure: 4,000 PSI
Maximum temperature: 100°C
Accuracy: ±1% or ±1 μL/min. (whichever is greater)
Precision: 0.25%, 0.05 - 4 mL/min. @ 20°C
Pulsation: 1% Δ P/P @ >1,500 PSI pressure
Dimensions: 6.75" W x 15.6" D x 6.75" H
Weight: 16 lbs.
Power requirement: AC100 - 240 V, 50/60 Hz
- Part Number:
- 541-0004HT
- Wetted Material:
- 316 Stainless Steel, Titanium, PEEK, UHMW Polyethylene, Teflon, Sapphire and Ruby
