Inlet/Outlet Check Valve Cartridges
576-5003
- Stepper motor with drive/controller
- Self-priming check valves allow operation in horizontal or vertical mounting orientation
- Patented floating pump seal design for extended seal life
- Wash seal optional for pumping buffers
- Graphical user interface via USB connection
- Modbus RTU, RS485 serial communications protocol for OEM software control
- OEM inquery without cover or material options are welcome, please contact us.
Current stock:
0

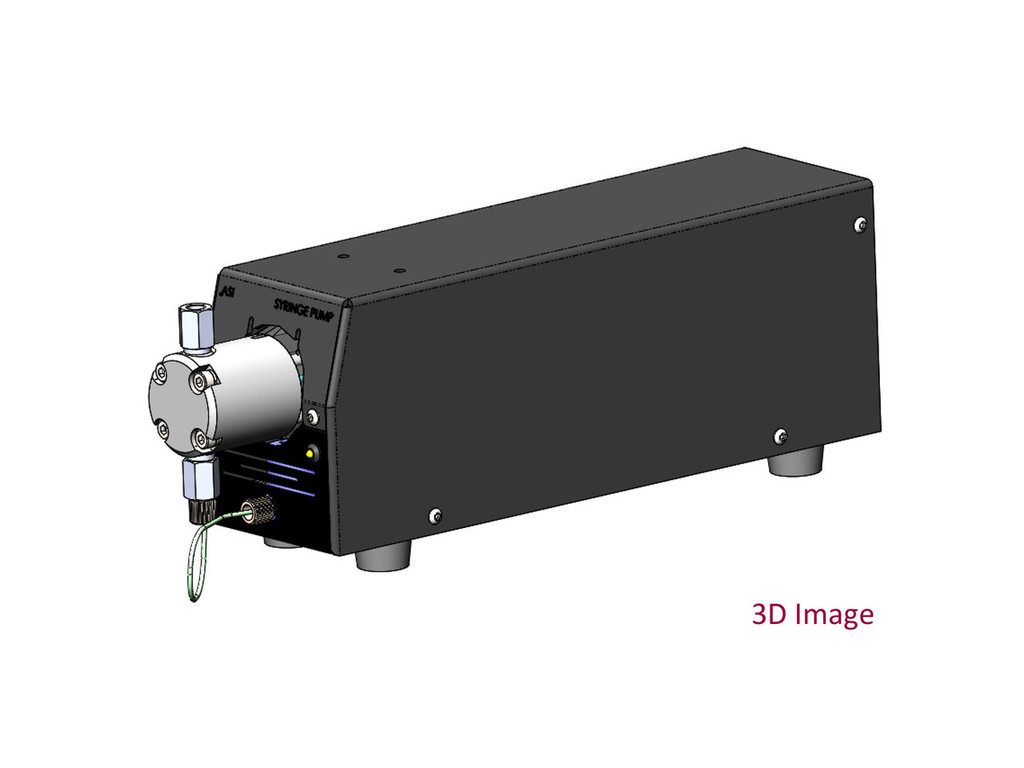

Stroke Volume: 0.150 mL, UHPLC Syringe Pump
US$2,450.00
Part Number: 576-5000-02SS
- Specifications:
- Piston diameter: 0.125"
- Maximum pressure: 6,000 PSI
- Operating Temperature: 4 - 40°C
- Dimensions (with cover) : 13.75" L x 3.0" W x 4.1" H
- Power: 100 to 240 Vac, 50 - 60 Hz, 1 A Max
- OEM Power Option: 24 VDC, 3 A Max
- Part Number:
- 576-5000-02SS
- Wetted Material:
- 316 Stainless steel, PEEK, Sapphire (piston), UHMW (piston & wash seals), Ruby ball & Sapphire seat
